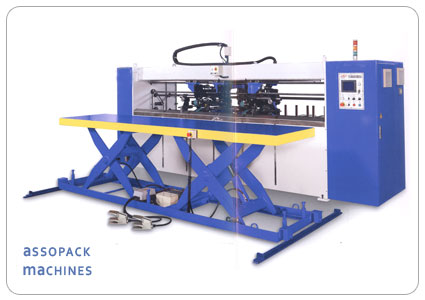

Semi-Auto Twin Head Stitcher

Semi-Auto Twin Head Stitcher
Semi-Auto Twin Head Stitcher
Salient Features:

Double servo motors coordinates to control stitching and feeding pitch, solve that tradition brake clutch to be fault rate high, over come a crank rockers mechanic that is unstable shortcoming completely. Special stoppers designing can respond to the paper by pushed alone and starts stitching automatically. Full-automatic location system set up the size of the cardboard pass htl to get quick-change different products and offer memory function.

Size & Stitching Type:

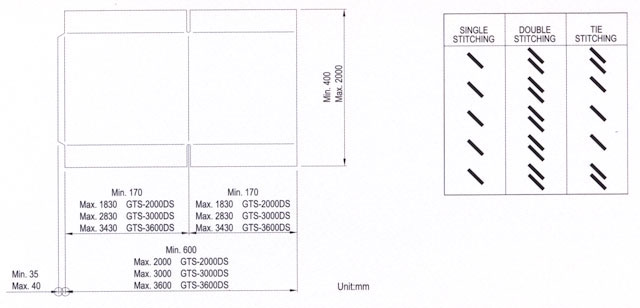

Semi-Auto Twin Head Stitcher Table

Technical Specifications :

Type ATS-2000DS ATS-3000DS ATS-3600DS
Stitching Speed 450 Stitches / min
Max. Product Size 2000 x 2000 mm 3000 x 2000 mm 3600 x 2400 mm
No. of Stitches 3-99 Stitches (Adjustable)
Stitches Pitch Min. 10mm / Max. free
Power Required 17HP
M/C Weight 3000 kg / 3500 kg / 4000 kg

Note : Due to continues innovation specification subjected to change without prior notice. Modification reserved, design, weight & specifications not binding due to constant changes & improvements. Accessories shown in the pictures may not be the part of standard euipments.
