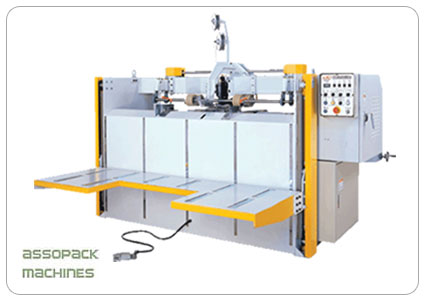

Semi-Auto Stitching Machine

Semi-Auto Stitching Machine
Semi-Auto Stitching Machine

Salient Features :

  • Independent control for front and rear feeding wheels offer auto-feed and push in control types to different product.
  • A patent feeding wire device can smooth and indeed to feed wire. Double linkages stitching head makes by special alloy steel with precise grinding. That is less requiring to lubricate and easy to maintain.
  • New designing for stopper device outstands before limit. That can do special box without cover or just short cover.

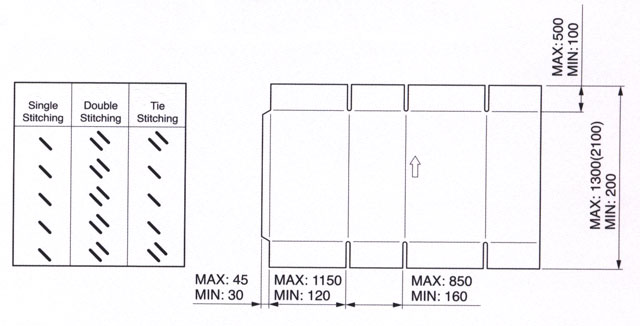

Size & stitching Type:
Size & Stitching

Technical Specifications :

Model AM-202N5
Stitchung Speed 400 Stitches / Min
No. of Stitchers 3-99 Stitches (Adjustable)
Stitches Pitch 3-99 Stitches (Adjustable)
Stack Height 850 MM
Power Required 5 1/2 HP
M/C Weight 2500 kgs

Note : Due to continues innovation specification subjected to change without prior notice. Modification reserved, design, weight & specifications not binding due to constant changes & improvements. Accessories shown in the pictures may not be the part of standard euipments.
