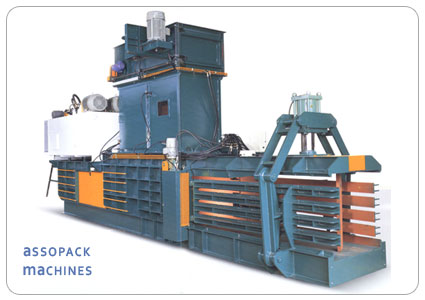

Recycling Equipment Automatic Bailing Press

Technical Specifications :

Type	AM-0505F	AM-7575F (S) / AM-7575 - II						AM-1108F			AM-1111F
								S	-	L	-			S
Main Cylinder	Ø125 x 900 st	Ø150 x 1600 st			Ø180 x 1600 st			Ø200 x 2000 st	Ø224 x 2400 st	Ø200 x 2900 st	Ø250 x 2900 st			Ø250 x 2400 st
Horsepower	10 hp	20 hp	30 hp	40 hp	20 hp	30 hp 40	40 hp 40	30 hp 40	40 hp 40 hp 40	40 hp	80 hp	120 hp	180 hp	80 hp	120 hp	180 hp
	7.5 k.w	15 k.w	22.5 k.w	30 k.w	15 k.w	22.5 k.w	30 k.w	22.5 k.w	30 k.w	30 k.w	30 K.Wx2	40 k.wx2	45 K.Wx2	30 k.wx2	40 k.wx2	45 k.wx2
Feed Opening Dimensions (mm)	625 x 460	1025 x 710 / 1000 x 1485						1500 x 1020	1800 x 1020	2400 x 1020	2400 x 1020			1800 x 1020
Bale Chamber (mm)	500 x 500 x 900	750 x 750 x 1600						1100 x 750 x 2000	1100 x 750 x 2400	1100 x 750 x 2900	1100 x 1100 x 2900			1100 x 1100 x 2400
Bale Dimensions (mm)	500 x 500 x L	750 x 750 x L						1100 x 750 x L	1100 x 750 x L	1100 x 750 x L	1100 x 1100 x L			1100 x 1100 x L
Bale Density (O.C.C	450~550 (kg/m3)	450~550 (kg/m3)			500~600 (kg/m3)			450~500 (kg/m3)	500~600 (kg/m3)	450~500 (kg/m3)	500~600 (kg/m3)			500~600 (kg/m3)
Max. Thrust Force	21 ton	40 ton			55 ton			75 ton	90 ton	75 ton	115 ton			115 ton
Cycle Time (Unload)	19 sec	18 sec	13 sec	10 sec	26 sec	18 sec	14 sec	32 sec	28 sec	35 sec	27 sec	18 sec	12 sec	22 sec	15 sec	10 sec
Capacity (40~60kg/m3)	1~1.5 ph	3.5~5 tph	4~6 tph	5~7 tph	2.5~4 tph	3.5~5 tph	4~6 tph	3~5 tph	5~7 tph	5~7 tph	10~15 tph	15~21 tph	20~27 tph	10~15 tph	15~21 tph	20~27 tph
Number of Ties	3	4						4			5
Wire Size	Ø2.4~2.7 (mm)	Ø2.7~3.6 (mm)						Ø2.7~3.6 (mm)			Ø2.7~4.0 (mm
Oil Reservoir	280 L	540 L						1000 L	1460 L		2000 L	2700 L	4600 L	2000 L	2700 L	4600 L
Machine Weight	3 ton	7 ton ; 8 ton (s) / 8 ton						11 ton	12 ton	13 ton	23 ton	24 ton	25 ton	22 ton	23 ton	24 ton
