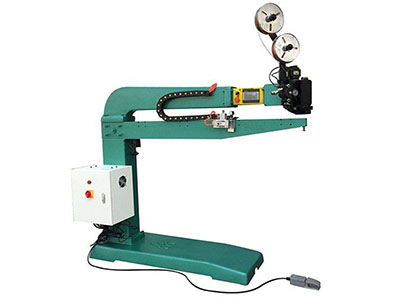

Double Servo Box Stitching Machine

Double Servo Box Stitching Machine
Double Servo Box Stitching Machine

Excellent features of CFM-DS series are as follow:

  • Double servo.
  • Easy to use, small to move, efficient.
  • Touch screen operation, easily set up.
  • Double Servo Box Stitching Machine can stitch single/double stitches each shot.
  • Double Servo Box Stitching Machine can stitch 3/5/7ply cardboard.
  • Excellent mechanical design can reduce the labor intensity of employees effectively.
  • The main spare parts and automatic kits are all imported from japan, germany, taiwan, etc. quality guaranteed.

Technical Specifications :

Model No. CFM-DS 1200 CFM-DS 1500 CFM-DS 1700
Size of machine 2.2m³ 2.5m³ 2.7m³
The distance to push the carton 1200mm 1500mm 1700mm
Arm length 1200mm 1500mm 1700mm
Wire size 18# 18# 18#
Lower arm to the ground1250mm 1250mm 1250mm 1250mm
stitch speed500 nails/minute 500 nails/minute 500 nails/minute 500 nails/minute
Clutch 2.5 kg pluger width 2.5 kg pluger width 2.5 kg pluger width
Pluger width 38mm horse power 38mm horse power 38mm horse power
Horse power 1/2 hp 1/2 hp 1/2 hp
Net weight 470 kgs 490 kgs 510 kgs
Single cardboard thickness 3-10mm (3/5/7ply) 3-10mm (3/5/7ply) 3-10mm (3/5/7ply)
Servo double double double

Note : Due to continues innovation specification subjected to change without prior notice. Modification reserved, design, weight & specifications not binding due to constant changes & improvements. Accessories shown in the pictures may not be the part of standard euipments.
