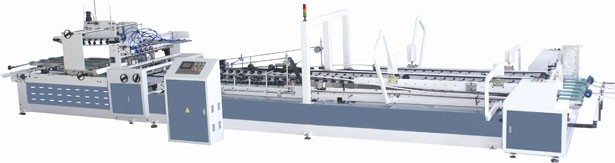

Automatic Folder Gluer Machine

Automatic Folder Gluer Machine
Automatic Folder Gluer Machine

Description & Feature:

Qf-afg series Automatic Folder Gluer Machine consiste of three sections: vacuum feeding section, glue & folding section, counter & stacker section. Frequency conversion motors with quality inverter adjust speed. Plc & Touch screen control system for easy operation and running stable. Average speed 150sheets/min. Energy conservation and high speed saving labor cost.

Feeding Section

  • Vacuum suction feeding to feed warping paperboard easily.
  • Quality electromagnetic clutch and brake adopted, feeding Section controlled.
  • independent, operation easily.
  • Scorer wheel adjustable, suit for 2-8mm thick paperboard.
  • Second creasing traction can impress again the paperboard Which was not creased well.

Glue Folding Section

  • Simples structure and high reliability glue quantity adjustable.

Cleaning Easily

  • Stainless steel glue wheel adopted, long life and saving glue cost.
  • Imported quality belt adopted, automatic flooding.
  • With paperboard rectify device and creasing rectify device.

Counter & Stacker Section.

  • Stacking and counting are simple and reliable.
  • Digital control, operation easily and reliable.
  • No-stop put in data and automatic counting.
  • With rectification function.

Technical Specifications :

Model QF-2400
Max.Cardboard (mm) 1000*2200
Mini.Cardboard (mm) 350*750
Dimensions (mm) L11000 * W3000 * H1600
Total weight 6000kg
Power Required 11.5kw 380V 3phase 50HZ
Paperboard thickness 3 or 5 layer paperboard
Control PLC & TOUCH SCREEN(Delta)

Note : Due to continues innovation specification subjected to change without prior notice. Modification reserved, design, weight & specifications not binding due to constant changes & improvements. Accessories shown in the pictures may not be the part of standard euipments.
