Flute Roll

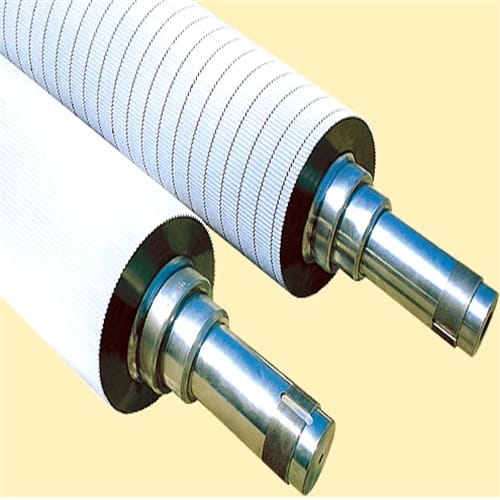

A B C D E flute Single Facer corrugated roller
Flute Roll

Corrugating rolls as one of main industry corrugating rolls : can be devided into chrome plated corrugating roll & tungsten carbide corrugating roll corrugated cardboard roll/single facer A, B, C, D, E Flute Corrugated Roller.

Characteristics :

1.The diameter of corrugated roller is Φ260-280mm, Φ310mm, Φ320mm, Φ360mm, Φ430mm. It is made from alloy steel 48crmo or tungsten carbide. The roller with heat treatment is polished, plated with chrome, the hardness of its surface reaches above sh75.

2.The surface of the corrugated roller can be coated with carbon tungsten, which makes the roller wear-resisting and highly effective, reduces the shrinkage ratio of corrugated paper, and ensures long service life.








Technical specifications:-

Surface plating:
Micro Hardness HV900-1250 Material:

48 and 50 cr mo alloy steel forging.hardness:: > 55-60 HRCoating thickness: 22-28

Micro-CracksWidth: 1400-2500mm
Diameter: 240-380mm

Note :Due to continues innovation specification subjected to change without prior notice. Modification reserved, design, weight & specifications not binding due to constant changes & improvements. Accessories shown in the pictures may not be the part of standard euipments.
